Our PRODUCTION

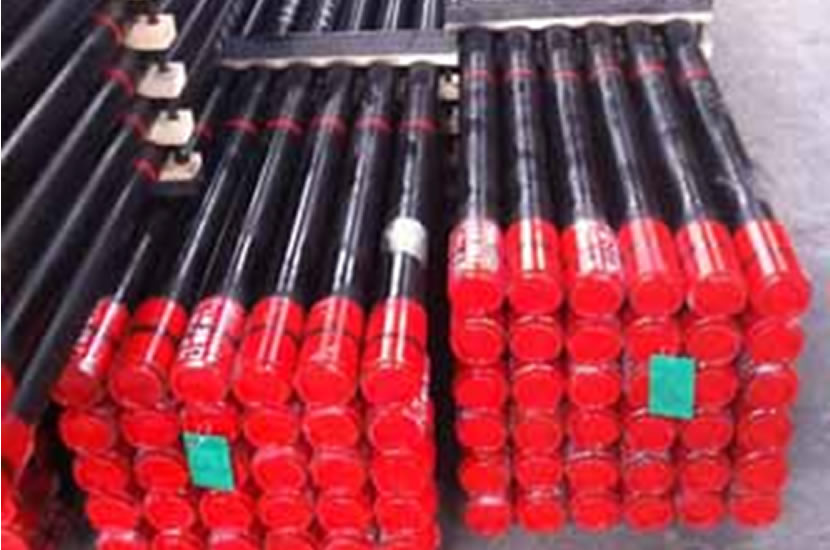

Oil Country Tubular Goods
Specifications:
API 5CT latest edition
OCTG from 1.660″ to 30” + respective couplings, crossovers and pup joints
API Grades from H40 to Q125 and 13% CR
ALL API Standard Weights
API and Premium Joint Connections
Seamless & Welded:
Standards: API Specification 5CT latest edition at time of manufacture (PSL-1, PSL-2, PSL, 3) Petroleum and Natural Gas industries – Steel pipes for use as casing or tubing for wells
Sizes: Outside Diameter: 1.660″ – 30″
Grades: H40, J55, K55, N80,N80Q, L80, C90, C95, T95, P110, Q125, 1%CR, 9%CR, 13%CR
Oil Country Tubular Goods
Connections:
STC (short round thread casing)
LTC (long round thread casing)
BTC (buttress thread casing)
NUE (non-upset tubing)
EUE (external upset tubing)
Premium Connections
And almost any premium & gas tight connection
Length: Range 1, Range 2 and Range 3
Mill Test Certificates:
Issued in accordance with API Specification 5CT Latest Edition. Additional Third Party Inspection can also be performed on request.

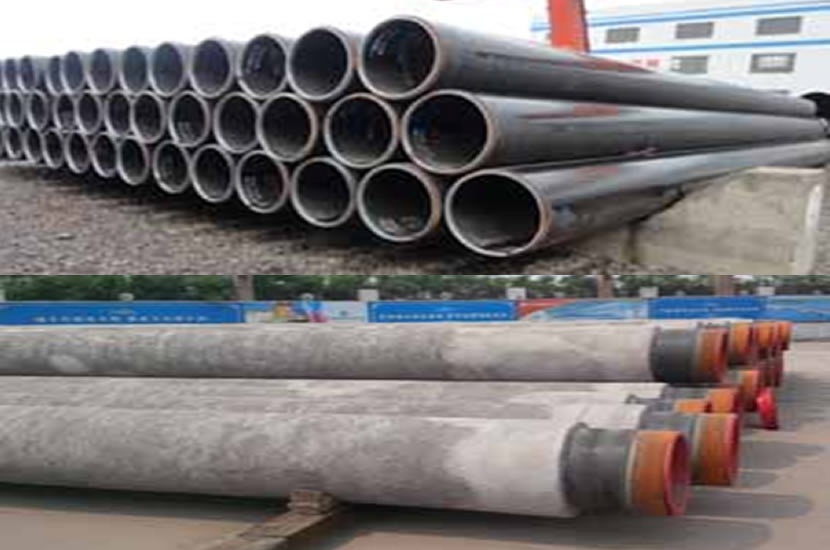

Line Pipe
Seamless & Welded
Standards: API 5L latest edition (PSL1 & PSL2): GR. B, X-42 to X80.
ASTM A-106: GR. A, B, C
ASTM A-53: GR. A, B
With supplementary requirements of NACE MR 0175 for Sour Service
Sizes:
Seamless: Outside Diameter 1/8” – 24” ERW/HFI: Outside Diameter 1/2” – 24” L-SAW/SPIRAL SAW: Outside Diameter 12” – 120” FBE Coating Fusion bonded Epoxy Coating 3 PE Three Layer Polyethylene Coating 3 PP Three Layer Polypropylene Coating
Concrete coating
Lengths:
6 mtr & 12 mtr (with tolerances), SRL & DRL
Drill Pipes
According to API 5D and API Spec. 7 latest edition Drill Pipes and sour service drill pipes from 2 3/8” to 6 5/8″ Grades of E, X, G, S Tool joints: NC26, NC31, NC38, NC40, NC46, NC50, NC56, 5 œ FH, 6 5/8 FH and HLDS26 to HLDS50, HLDS 5 œ to HLDS 6 5/8, others available on request. Hard Banding and Internal Plastic Coating available on request
Heavy Weight Drill Pipes (HWDP)
According to API 7 and API RP 7G Size Range: 3 1/2″ to 6 5/8″ Hard Banding: As per request
Drill Collars
Size Range: 3 1/8″ to 14″ Slick or Spiral Connections: NC 23, NC 26, NC 31, to NC 50 Hard Banding: Arnco Series, others on request
Perforated Pipe
The perforated pipe with cutting edge technology, which is manufactured carbon steel or stainless steel, used for the application of oil reservation layer without much sand or for application of prevents the rock bits dropping off the well bore.

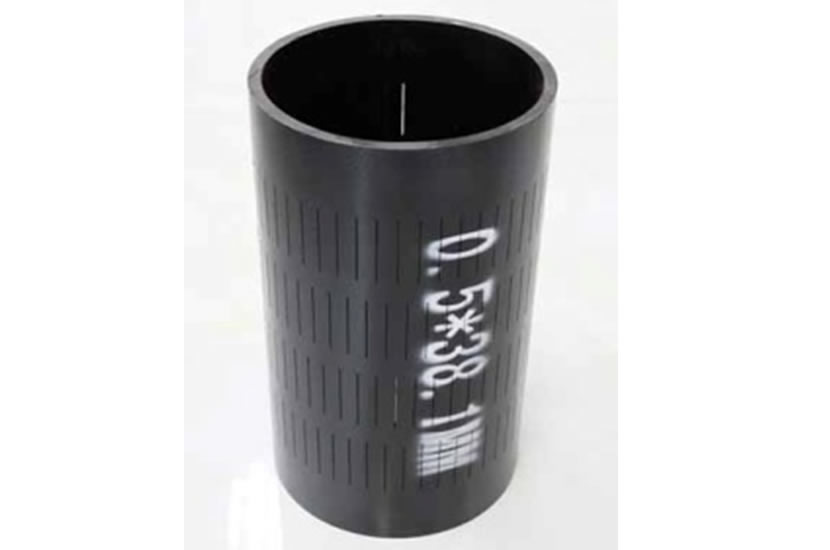

Slotted Casing Pipe
The slotted pipes using in oil exploration can prevent 99% sand, decrease 80% of tubing heavy repair and increase the tubing strength, integrality and stability of keeping off sand.
Feature:
The slotted liner is a robust and cost-effective solution for long completions or low productivity wells.
We offer rectangular and trapezoid slotted pipe in a wide range of slotting patterns to satisfy the required open area.
High rigidity, resisting scrape and abrasio, high intensity, anti-corrosion and even distribution.
Main Technical Data:
Material: Carbon Steel, Stainless Steel
OD of Pipe: 50-800mm
Wall thickness: ≤16mm
Width of slot:(0.15mm-20mm) ±0.03mm
Number of slots: According to the order
Distribution types of slots: Parallel, Cross, Spiral
Couplings for Tubing and Casing

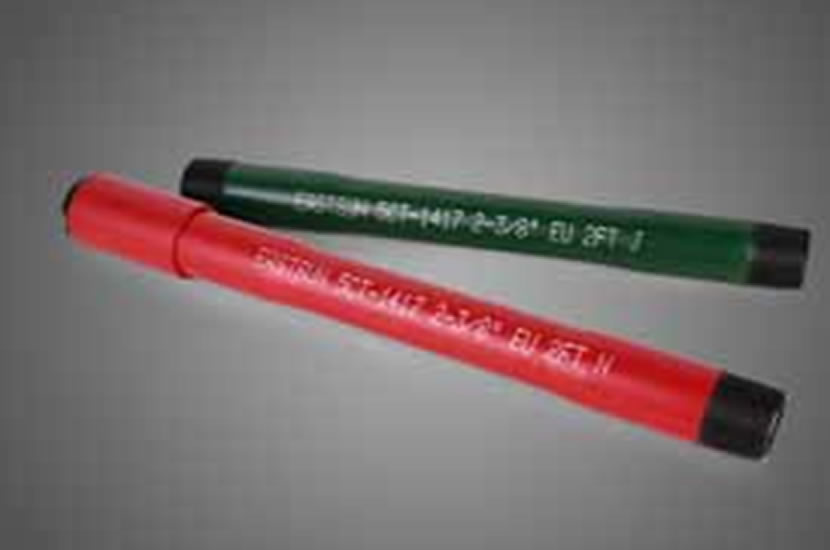

Pup Joint for Tubing and Casing
